Description

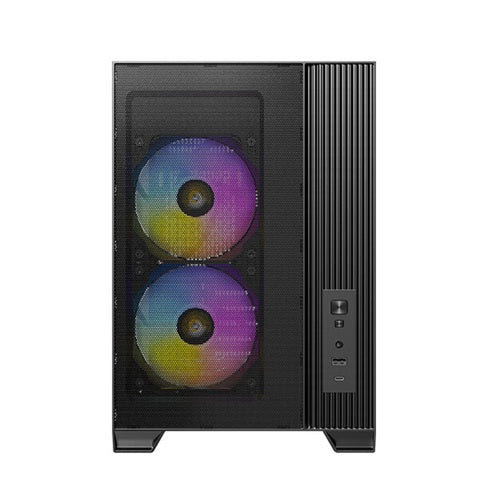

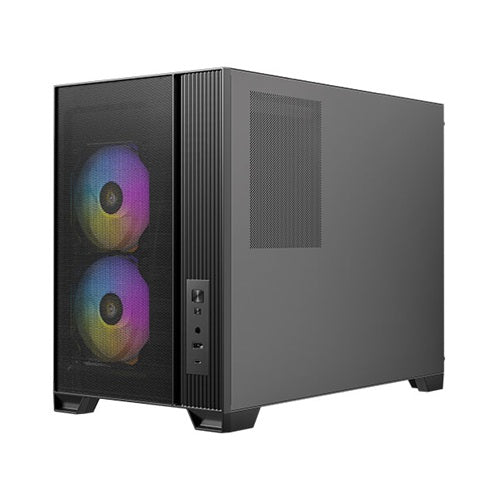

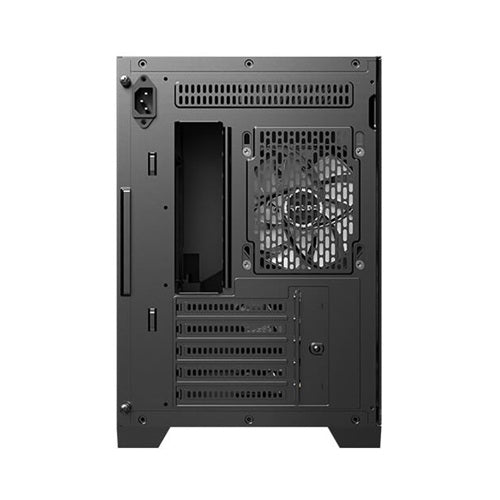

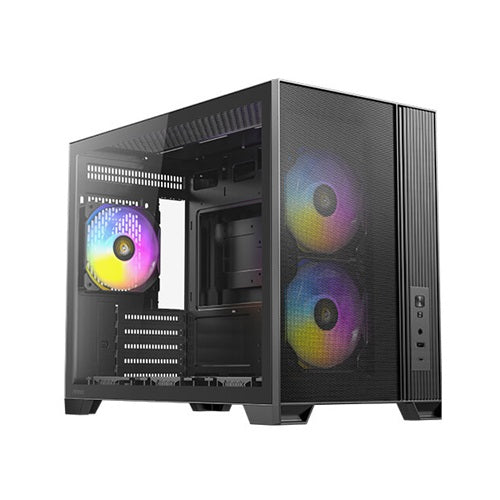

Antec Flux M - Black , Micro-ATX/ITX, F-LUX Airflow, TG, 6xPWM Fans, 360mm Rad, 405mm GPU, USB-C Gen2, 2Yr Wty
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Flux Vertical Cooling
A large bottom mesh panel boosts airflow, enhancing cooling efficiency around the graphics card.
Flux Horizontal Cooling
Air intake via the front mesh provides a smooth venting channel throughout the case.
SPEICIFICATIONS
main spec
Dimensions 459 x 247 x 365mm (DWH)
Form Factor Compact MicroATX
Materials Steel + Plastic
Mainboard Support Micro-ATX , ITX
Front Access & Controls Power, Reset , USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo Jack
Side Panel 3mm Tempered Glass
Drive Bays
Expansion Slots 5
3.5" / 2.5" 2 / 2
Fan Support
Front 2 x 120mm
Top 3 x 120mm
Bottom 3 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 X 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rear
Radiator Support
Top 120 / 240 / 360mm
Rear 120mm
Clearance
Max GPU Length ≤405mm
Max CPU Cooler Height ≤175mm
Max PSU Length (Cable not included)≤160mm
Miscellaneous
Dust Filter Top / Bottom
Net Weight 6.35 Kg
Gross Weight 7.41 Kg
Warranty 2 Years
UPC 0-761345-10253-7
